High Hardness Abrasion Resistant 500 HBW Manganese Steel Wear Resistance Plate
NM500 Wear Resistant Steel Plate
Grade: NM500 (Equivalent to AR500 / Hardox 500).
Hardness: Average 500 HBW (Hardness Brinell) .
Process: Hot Rolled, Quenched & Tempered (Q+T) .
Dimension: Thickness 3mm - 120mm, Width 1500mm - 2500mm, Length customizable .
Application: Mining dump trucks, excavator buckets, concrete pumps, chutes, and liners .
Service: Provide cutting, bending, drilling, and welding according to CAD drawings .
Advantage: High durability, extended service life, reduced maintenance costs.
Tel : +86 18615618035
Email : alice@sdpuxinsteels.com
WhatsApp : +86 18615618035
Online Message
Email

Product Description

NM500 Wear Resistant Steel Plate

NM500 Wear Resistant Steel Plate – Superior Hardness for Extreme Conditions

NM500 is a high-strength wear-resistant structural steel grade under the Chinese GB/T 24186 standard. The "NM" stands for "Nai Mo" (wear-resistant), and "500" indicates the nominal Brinell hardness value of 500 HBW . It is designed to provide optimal protection in high-wear applications, significantly extending the service life of mechanical equipment compared to standard carbon steel.


Product Overview

Product GradeNM500 (Equivalent to Hardox 500 / AR500 / JFE-EH500 / XAR 500)
StandardGB/T 24186 (Mill certificates available)
Delivery ConditionQuenched & Tempered (Q+T)
Hardness (HBW)470 – 530 (Nominal 500 HBW)
Tensile Strength≥1250 – 1300 MPa
Yield Strength≥1000 MPa
Thickness4 – 140 mm (common: 6 – 60 mm)
Width1500 – 3500 mm
Length6000 – 12000 mm (custom lengths available)
Processing ServicesLaser cutting (≤30 mm), plasma cutting, oxy-fuel cutting; drilling, beveling; hot forming (600–800°C); welding with preheating support; custom fabrication per CAD
Delivery SurfaceAs-rolled, pickled, or anti-rust oiled; mill edge or trimmed edge
PackagingExport seaworthy packing: steel pallets, steel strips, wooden crates; protective coating
Minimum Order Quantity (MOQ)3 tons (mixed specifications accepted)
Lead Time7 – 15 working days after deposit confirmation



ElementCSiMnPSCrMoNiB
Value≤0.38≤0.70≤1.70≤0.025≤0.015≤1.20≤0.65≤1.00≤0.004

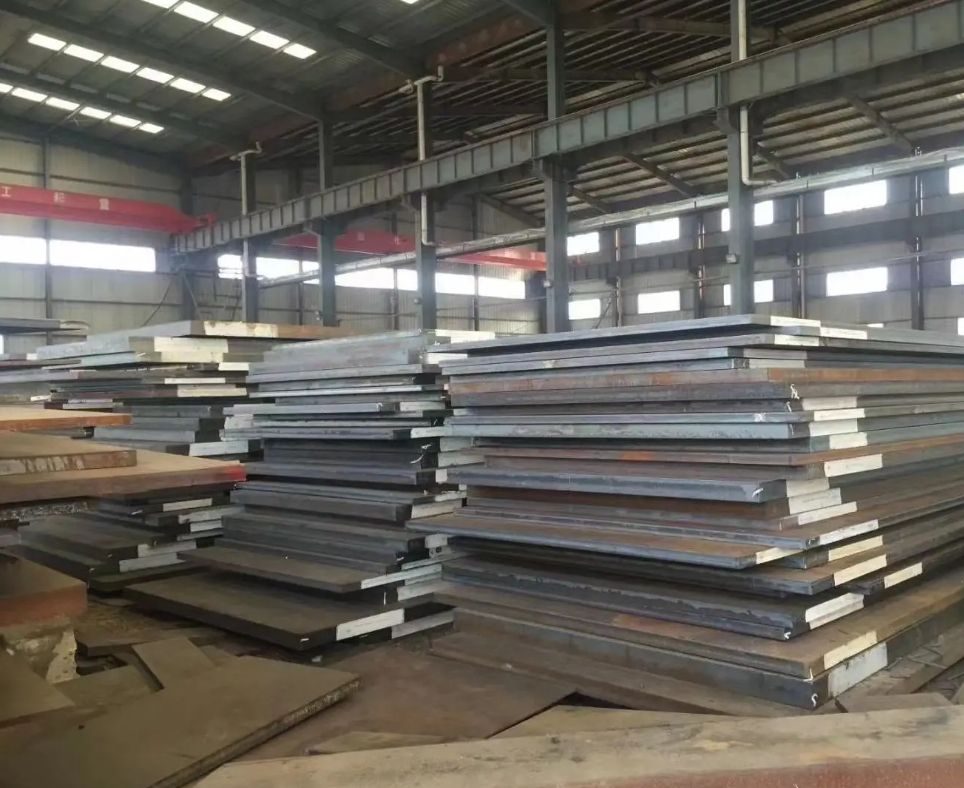

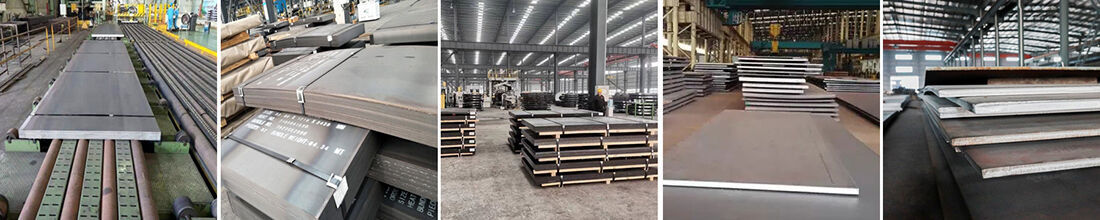

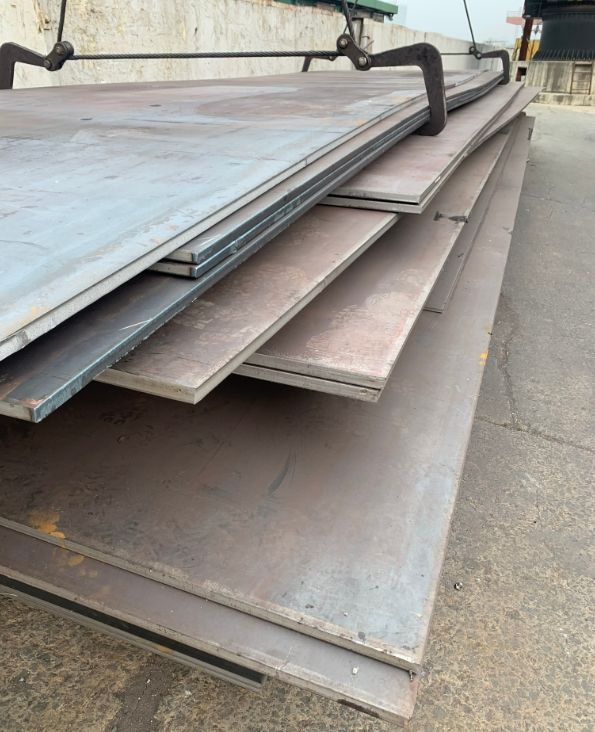

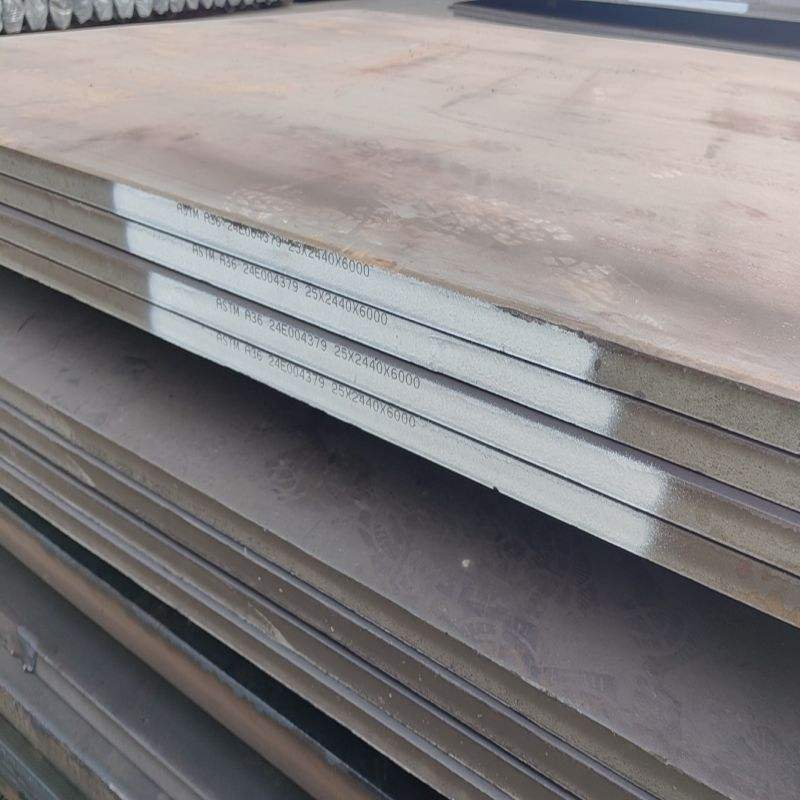

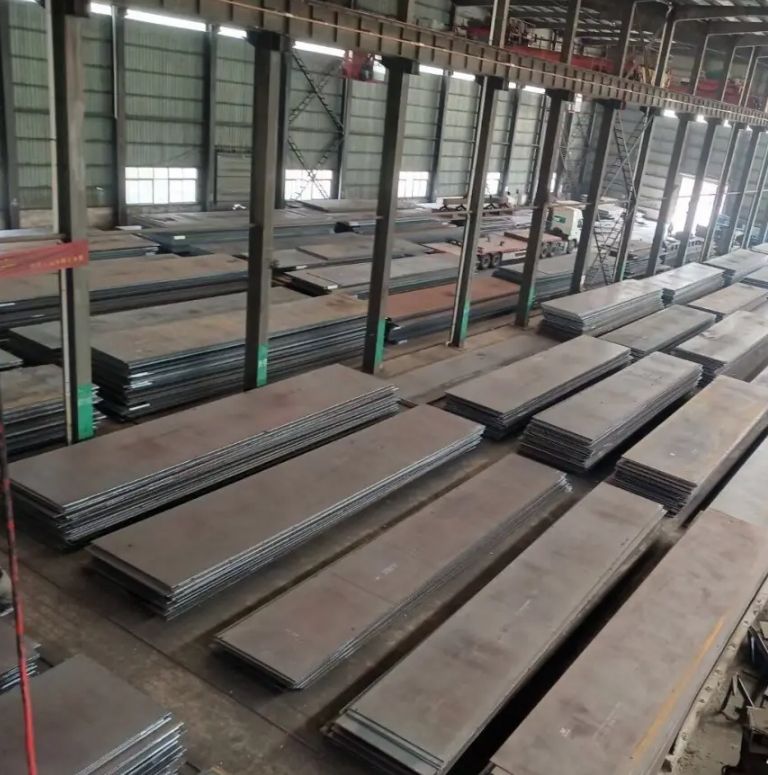

Product display



Product application


Client feedback
