A36 H Beam Hot Rolled Welding Universal Beam
Standard: ASTM A36 / ASTM A6
Material: Carbon Steel (A36 Grade)
Yield Strength: ≥250 MPa
Tensile Strength: 400-550 MPa
Dimensions: Web height 100-900mm, Flange width 50-400mm, Length 6-12m (custom available)
Processing: Cutting, welding, drilling, bending
Application: Building construction, industrial plants, bridges, steel structures
Advantage: Optimized section design | High strength-to-weight ratio | Easy installation | Cost-effective structural solution
Tel : +86 18615618035
Email : alice@sdpuxinsteels.com
WhatsApp : +86 18615618035
Online Message
Email

Product Description

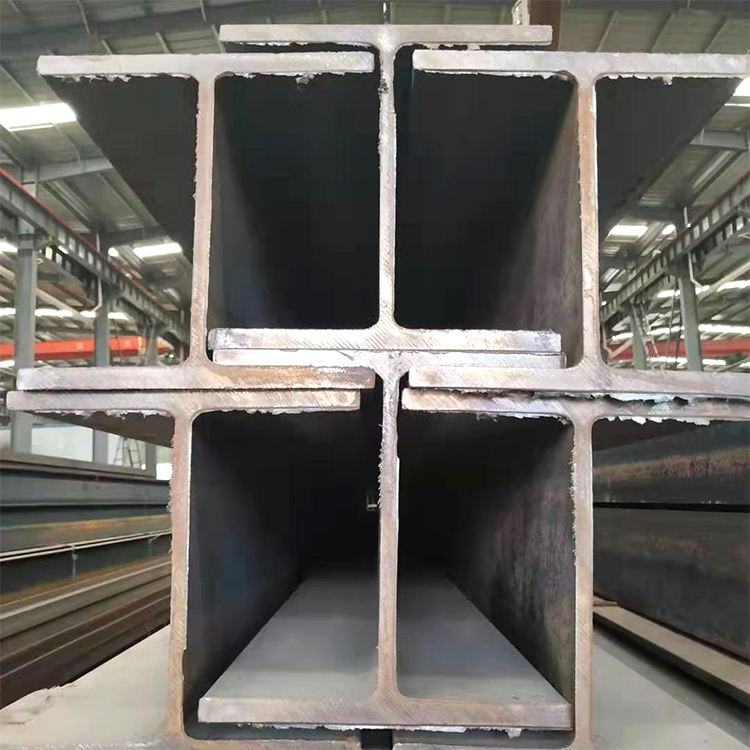

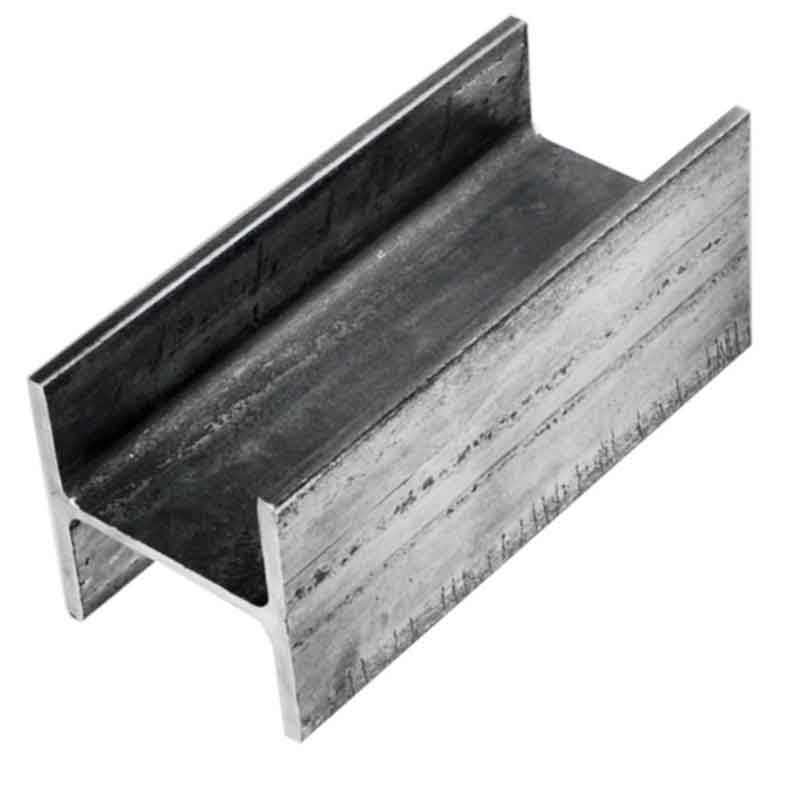

A36 H beam

ASTM A36 H-beam (also known as Wide Flange Beam or W Beam) is a hot-rolled structural steel section with an "H"-shaped cross-section. The design features parallel flanges and a web that provide excellent load-bearing capacity in both vertical and horizontal directions . As one of the most commonly used structural steel grades, A36 H-beam offers an optimal strength-to-weight ratio, making it an economical and efficient choice for various construction applications .

A36 is a low-carbon structural steel grade with good weldability, formability, and machinability, allowing easy fabrication on-site or in workshops.


PRODUCT DESCRIPTION

Product NameASTM A36 Hot Rolled H Beam / Wide Flange Beam / W Beam
StandardASTM A36 / ASTM A6
Material GradeA36 Carbon Steel (Equivalent: Q235B, S235JR, SS400)
Yield Strength≥250 MPa (36 ksi)
Tensile Strength400 – 550 MPa (58-80 ksi)
Elongation≥20%
Web Height100 – 900 mm (custom available)
Flange Width50 – 400 mm (custom available)
Web Thickness4.5 – 36.5 mm
Flange Thickness8 – 64 mm
Length6 – 12 meters (custom up to 18m)
Section SeriesW Series (Wide Flange), HP Series, M Series
Processing ServicesCutting, welding, drilling, punching, bending, surface treatment
Surface FinishNatural, primer-coated, shot-blasted, hot-dip galvanized
PackagingExport seaworthy packing: steel pallets, bundles, wooden crates
MOQ5 – 10 tons (flexible)
Lead Time7 – 21 working days
CertificationMill Test Certificate (MTC), SGS/BV third-party inspection available

DesignationWeb Height (mm)Flange Width (mm)Web Thickness (mm)Flange Thickness (mm)
W6×151521526.19.1
W8×242031657.210.2
W10×332542037.412.1
W12×503052059.414.2
W14×9035625411.217.3
W18×11945928213.321.4
W24×17661030516.327.7
W30×21176235218.332.8
W36×25691438020.836.5

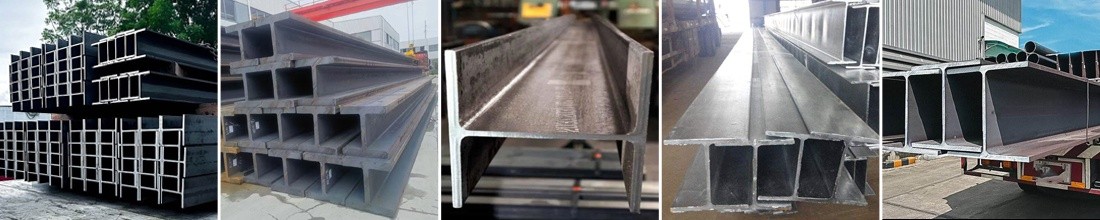

Product display
